商品の詳細:
お支払配送条件:
|
| キーワード: | 振動スクリーン | 名前: | 円の振動スクリーン |
|---|---|---|---|
| 機能: | 円動きの移動 | 最高の供給のサイズ（mm）: | 400 |
| 容量（m3/h）: | 8-680 | 振動力（r/min）: | 800-970 |
| モーター力（kw）: | 5.5-45 | 総重量（kg）: | 3500-19600 |
| 次元（L*W*H） （mm）: | 別のモデル | 適用: | 鉱山、構造、交通機関、エネルギーおよび化学工業 |
| ハイライト: | 680m3/H円の振動スクリーン、8m3/H回状の振動スクリーン、680m3/H円形の振動スクリーン,8m3/H Circular Vibrating Screen,680m3/H round vibrating screen |
||
low energy consumption multi-layer high efficiency vibrating screen

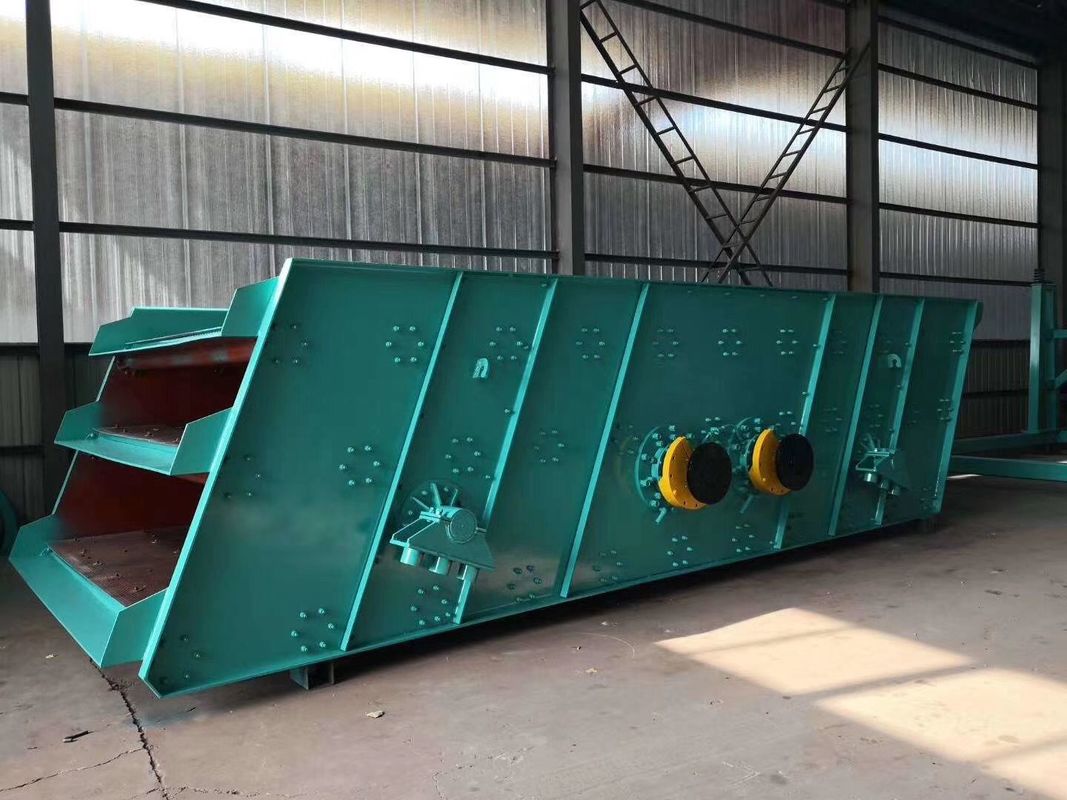

Circular vibrating screen
The circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen.It has the advantages of stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety.
Features
Simple structure; it is easy to replace the screen;
High screening efficiency, low energy consumption;
High wear resistance, low noise

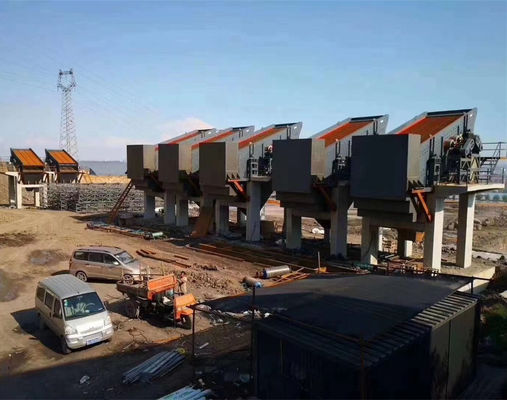

The circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. It has the advantages of stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety; circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industry.
Technical Superiority of Circular Vibrating Screen
1. It uses eccentric block to produce strong exciting force.
2. It adopts the structure of small amplitude, high frequency, large obliquity to achieve high efficiency, large handling capacity, long life span, low consumption, little noise.
3. Electricity power consumption is less.
4. Simple structure and easy to disassemble and replace;
5. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
6. Flexible connection and stable operation.
| Model | Sieve layer | Sieve area (m2) | Mesh size (mm) | Max feeding size (mm) | Capacity (m3/h) | Vibrating Power (r/min) | Duble amplitude (mm) | Motor power (kw) | Sieve obliquity (o) | Sieve spec. (mm) | Total weight (kg) | Dimensions (L*W*H)(mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 3500 | 2930*1860*870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 3850 | 3070*1860*1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200*3000 | 4200 | 3430*1860*870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4600 | 3570*1860*1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4600 | 4050*1860*870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500*3500 | 5200 | 4270*1860*1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 5890 | 4120*2210*1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 6700 | 4360*2210*1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 6330 | 5120*2210*1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 6800 | 5360*2210*1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500*4500 | 7800 | 5930*2210*2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500*4800 | 6980 | 5420*2210*1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500*4800 | 7700 | 5660*2210*1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500*4800 | 8700 | 6230*2210*2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800*4800 | 9080 | 5420*2550*1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800*4800 | 9600 | 5660*2550*1780 |
| 4YK1854 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800*4800 | 11100 | 6290*2550*2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800*5400 | 10150 | 5960*2500*1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800*5400 | 10840 | 6260*2550*1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800*5400 | 12840 | 6830*2550*2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*2600 | 11780 | 6720*2840*1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*2600 | 12800 | 7030*2840*1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100*2600 | 14800 | 7300*2840*2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400*6000 | 15600 | 7020*3140*1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400*6000 | 17600 | 7300*3140*1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400*6000 | 19600 | 7600*3140*2380 |
