商品の詳細:
お支払配送条件:
|
| モデル: | WBL | タイプ: | 運搬機械を高く上げます |
|---|---|---|---|
| 使用法: | プロセス100mm-200mm材料 | 適用: | 採鉱 |
| 名前: | エプロン送り装置 | 供給のサイズ: | 100mm-200mm |
| 材料: | 140kgよりより少し | 見掛け密度: | 1.2t/m3 |
| 質: | ISO/CE | 特徴: | 長い耐用年数 |
| ハイライト: | 200mmのエプロン送り装置のコンベヤー、100mmのエプロン送り装置のコンベヤー、100mmのエプロンは送り装置の重量を量る,100mm Apron Feeder Conveyor,100mm apron weigh feeder |
||

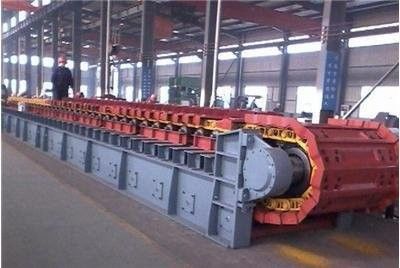

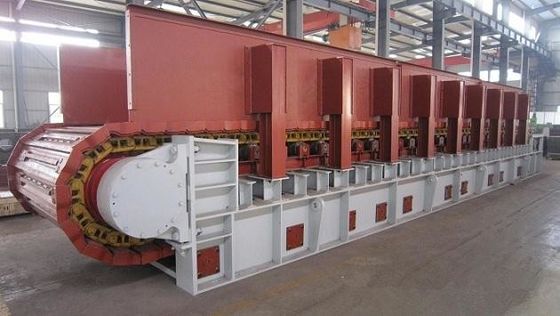

Apron Feeder 100mm-200mm convey bulk materials long service life
Description of Apron Feeder (Plate Feeder):
Our apron feeder, sometimes also referred to as plate feeder, is mainly used to process 100mm-200mm materials. And it is widely used for mining, transporting and batching in cement field, fertilizer industry, nonferrous metal sector, mining field, chemical industry, metallurgy sector, papermaking industry, etc. It is typically appropriate for continuously conveying materials in horizontal and inclined directions for running machines, silos, hoppers, and other kinds of containers.
It is mainly used to process bulk materials whose bulk density is no more than 1.2t/m 3, or block weight cannot be more than 140kg, and whose temperature should not be higher than 350℃. Our WBL type apron feeder is mainly used to convey bulk materials, which has turned intermittent material feeding into continuous material feeding. Besides, it has features of large traction power, less leakage, stable performance, long service life, easy maintenance, and more.
Established in 1958, we are professional manufacturer of apron feeder in China. Besides apron feeder, we also provide customers worldwide with chain conveyor, air slide, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our apron feeder, please contact us freely.
The technical data of the light duty Apron Feeder:
| Model | width(mm) | Length(mm) | Speed(m3/h) | Feed Size(m/s) | Capacity(mm) |
| WBQ500-2 | 500 | 2000 | 7-88 | 0.05-0.4 | 180 |
| WBQ500-3 | 3000 | ||||
| WBQ500-4.5 | 4500 | ||||
| WBQ500-6 | 6000 | ||||
| WBQ500-9 | 9000 | ||||
| WBQ500-12 | 12000 | ||||
| WBQ630-3 | 630 | 3000 | 11-175 | 0.04-0.4 | 200 |
| WBQ630-4.5 | 4500 | ||||
| WBQ630-6 | 6000 | ||||
| WBQ630-9 | 9000 | ||||
| WBQ630-12 | 12000 | ||||
| WBQF630-15 | 15000 | ||||
| WBQ800-3 | 800 | 3000 | 19-308 | 0.04-0.4 | 350 |
| WBQ800-4.5 | 4500 | ||||
| WBQ800-6 | 6000 | ||||
| WBQ800-9 | 9000 | ||||
| WBQ800-12 | 12000 | ||||
| WBQ800-15 | 15000 | ||||
| WBQ800-18 | 18000 |
The technical parameters of medium duty Apron Feeder:
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBL100-6 | 1000 | 6000 | 0.01-0.1 | ≦500 | 80-160 |
| WBL100-12 | 1000 | 12000 | 0.05-0.1 | ≦500 | 60-130 |
| WBL120-4 | 1200 | 4000 | 0.014-0.08 | ≦600 | 45-150 |
| WBL120-6 | 1200 | 6000 | 0.01-0.1 | ≦600 | 80-160 |
| WBL120-11 | 1200 | 11000 | 0.01-0.1 | ≦600 | 50-100 |
| WBL120-19 | 1200 | 19000 | 0.014-0.09 | ≦600 | 45-150 |
| WBL125-6 | 1250 | 6000 | 0.014-0.08 | ≦700 | 45-150 |
| WBL125-12 | 1250 | 12000 | 0.014-0.08 | ≦700 | 45-150 |
| WBL140-8 | 1400 | 8000 | 0.017-0.17 | ≦900 | 100-200 |
| WBL140-16 | 1400 | 16000 | 0.006-0.06 | ≦900 | 20-200 |
| WBL150-5 | 1500 | 5000 | 0.014-0.08 | ≦700 | 85-288 |
| WBL150-15 | 1500 | 15000 | 0.006-0.06 | ≦700 | 20-200 |
| WBL150-10.5 | 1500 | 10500 | 0.006-0.06 | ≦700 | 20-200 |
| WBL160-6 | 1600 | 6000 | 0.017-0.17 | ≦800 | 61-610 |
| WBL160-9 | 1600 | 9000 | 0.076 | ≦800 | 180 |
| WBL180-8 | 1800 | 8000 | 0.022-0.046 | ≦800 | 100-1000 |
| WBL180-12 | 1800 | 12000 | 0.05 | ≦800 | 360 |
| WBL220-10 | 2200 | 10000 | 0.018-0.055 | ≦1500 | 220-680 |
| WBL240-10 | 2400 | 10000 | 0.018-0.055 | ≦1500 | 220-680 |
The technical parameters of heavy duty apron feeder:
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBZ160-9 | 1600 | 9000 | 0.01-0.07 | ≦1000 | 27-270 |
| WBZ180-8 | 1800 | 8000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-8.75 | 1800 | 8750 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9 | 1800 | 9000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9.8 | 1800 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-10 | 1800 | 10000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ200-9.8 | 2000 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ220-10 | 1800 | 10000 | 0.01-0.07 | ≦1200 | ≦700 |
| WBZ230-10 | 2300 | 10000 | 0.01-0.07 | ≦1500 | ≦800 |
| WBZ240-10 | 2400 | 10000 | 0.02-0.06 | ≦1600 | ≦850 |
| WBZ250-11.5 | 2500 | 11500 | 0.01-0.07 | ≦1800 | 550-900 |
