商品の詳細:
お支払配送条件:
|
| 名前: | 円錐形の粉砕機 | 条件: | 新しい |
|---|---|---|---|
| 適用: | 鉱石の押しつぶすこと。二次に押しつぶすこと | モーター タイプ: | ACモーター |
| 容量（t/h）: | 9-2000 TPH | 次元（l*w*h）: | 4613x3302x4638 mm |
| モデル: | PSGの円錐形の粉砕機 | 入力サイズ: | 83-369MM |
| 排出の開始の範囲の調節: | 3-64 （mm） | 出力サイズ（mm）: | 35-460 |
| 最高の供給のサイズ（mm）: | 30-391 | 容量（T/h）: | 9-1941 |
| 主要なモーター力（KW）: | 22-400 | 保証: | 12か月 |
| 港: | チンタオ、上海、テンシン | ||
| ハイライト: | 460のMmの堅い砕石機機械,35Mmの堅い砕石機機械,460Mmの移動式円錐形の粉砕機 |
||

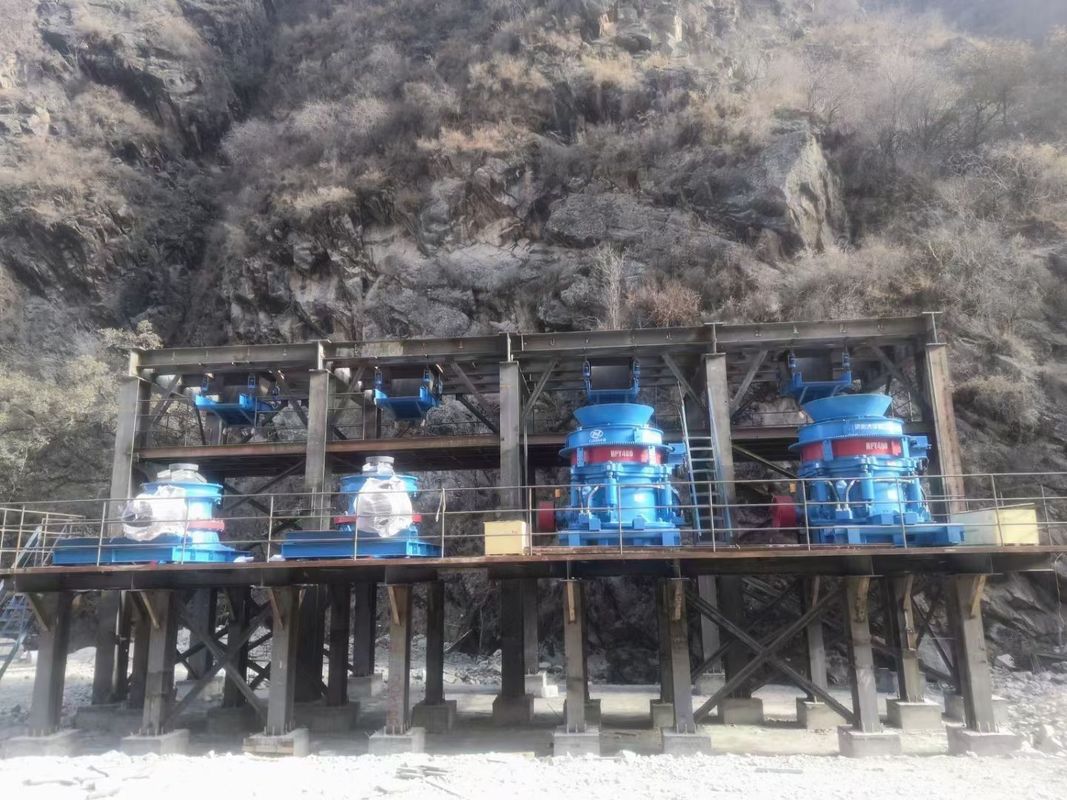

High Quality Cone Crusher Hard Stone Crusher for Sale
The cone crusher is suitable for crushing raw materials in metallurgy, construction, road building, chemistry and silicate industries. The cone crusher has large crushing ratio, high efficiency, low energy consumption, uniform product size, and is suitable for medium and fine crushing of various ores and rocks.
Technical Data
| Type | Model | Cavity Type | Diameter of cone (mm) | Adjusting Range of Discharge Opening (mm) |
Recommend feeding size when the minimum output size (mm) | Max feed size (mm) |
Capacity (t/h) | Main Motor Power (kw) |
Weight (kg) | Overall Dimension (L×W×H) (mm) |
| 2’FT | PSGB- 0607 | Standard fine | 600 | 6-38 | 70 | 60 | 16-50 | 22 | 4500 | 2195×1158×1651 |
| PSGB- 0609 | Standard medium | 10-38 | 95 | 80 | 18-65 | |||||
| PSGB- 0611 | Standard coarse | 13-38 | 110 | 90 | 22-70 | |||||
| PSGD- 0603 | Short head fine | 3-13 | 35 | 30 | 9-35 | |||||
| PSGD- 0605 | Short head coarse | 5-16 | 50 | 40 | 22-70 | |||||
| 3’FT | PSGB- 0910 | Standard fine | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PSGB- 0917 | Standard coarse | 13-38 | 175 | 150 | 59-163 | |||||
| PSGB- 0918 | Standard super coarse | 25-38 | 178 | 150 | 118-163 | |||||
| PSGD-0904 | Short head fine | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PSGD-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
| PSGD-0907 | Short head coarse | 6-19 | 102 | 85 | 59-129 | |||||
| 4.25’FT | PSGB- 1313 | Standard fine | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PSGB- 1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
| PSGB- 1324 | Standard coarse | 19-51 | 241 | 205 | 172-349 | |||||
| PSGB- 1325 | Standard super coarse | 25-51 | 259 | 220 | 236-358 | |||||
| PSGD-1306 | Short head fine | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
| PSGD-1310 | Short head coarse | 8-25 | 105 | 89 | 109-227 | |||||
| PSGD-1313 | Short head super coarse | 16-25 | 133 | 113 | 209-236 | |||||
| 5.5’FT | PSGB- 1620 | Standard fine | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
| PSGB- 1624 | Standard medium | 22-51 | 241 | 205 | 258-417 | |||||
| PSGB- 1626 | Standard coarse | 25-64 | 269 | 228 | 299-635 | |||||
| PSGB- 1636 | Standard super coarse | 38-64 | 368 | 313 | 431-630 | |||||
| PSGD-1607 | Short head fine | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 | |||||
| PSGD-1613 | short head coarse | 10-25 | 133 | 113 | 190-336 | |||||
| PSGD-1614 | Short head super coarse | 13-25 | 133 | 113 | 253-336 | |||||
| 7’FT | PSGB- 2127 | Standard fine | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4613×3302×4638 |
| PSGB- 2133 | Standard medium | 25-51 | 334 | 284 | 862-1424 | |||||
| PSGB- 2136 | Standard coarse | 31-64 | 369 | 314 | 1125-1814 | |||||
| PSGB- 2146 | Standard super coarse | 38-64 | 460 | 391 | 1252-1941 | |||||
| PSGD-2110 | Short head fine | 5-16 | 105 | 89 | 218-463 | 89500 | ||||
| PSGD-2113 | Short head medium | 10-19 | 133 | 113 | 404-580 | |||||
| PSGD-2117 | Short head coarse | 13-25 | 178 | 151 | 517-680 | |||||
| PSGD-2120 | Short head super coarse | 16-25 | 203 | 172 | 580-744 |
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
