商品の詳細:
お支払配送条件:
|
| 速度を回転させます: | 167回転/分 | シリンダー直径（mm）: | 4000 |
|---|---|---|---|
| シリンダーの長さ (mm): | 1600-3600 | ミル速度: | 15回転/分 |
| 保証: | 12か月 | 最大研削メディア負荷: | 18.5T |
| ポート: | 青島中国 | 状態: | 新しい |
Autogenous Mill Ore Ultrafine Grinding Equipment Steel Ball Wear-Resistant Liner
Introduction
The greatest advantage of an autogenous mill is that it can directly feed raw ore or coarsely crushed ore from the mine. Typically, the ore is fed into the rod mill according to a specific particle size ratio. An autogenous mill can grind the material to a particle size of 0.074 mm in one pass, accounting for over 20% to 50% of the total product. The crushing ratio can reach 4000 to 5000, more than ten times higher than that of ball and rod mills. An autogenous mill is a new type of grinding equipment that combines crushing and grinding functions. It uses the material itself as the medium, achieving crushing through mutual impact and grinding, hence the name "autogenous mill."
Technical Features
The cylinder, a key component of the mill, undergoes computer-generated finite element analysis to ensure operational reliability.
Large and medium-sized mills are equipped with a slow-speed drive.
Large and medium-sized mills are equipped with high- and low-pressure lubrication stations.
The control and protection system utilizes a PLC.

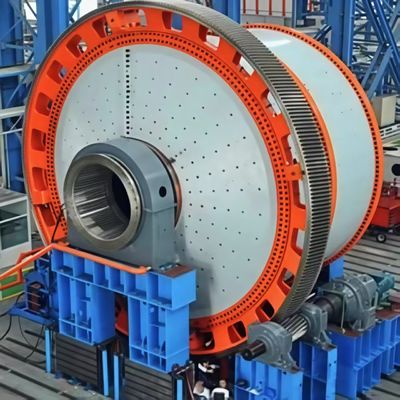

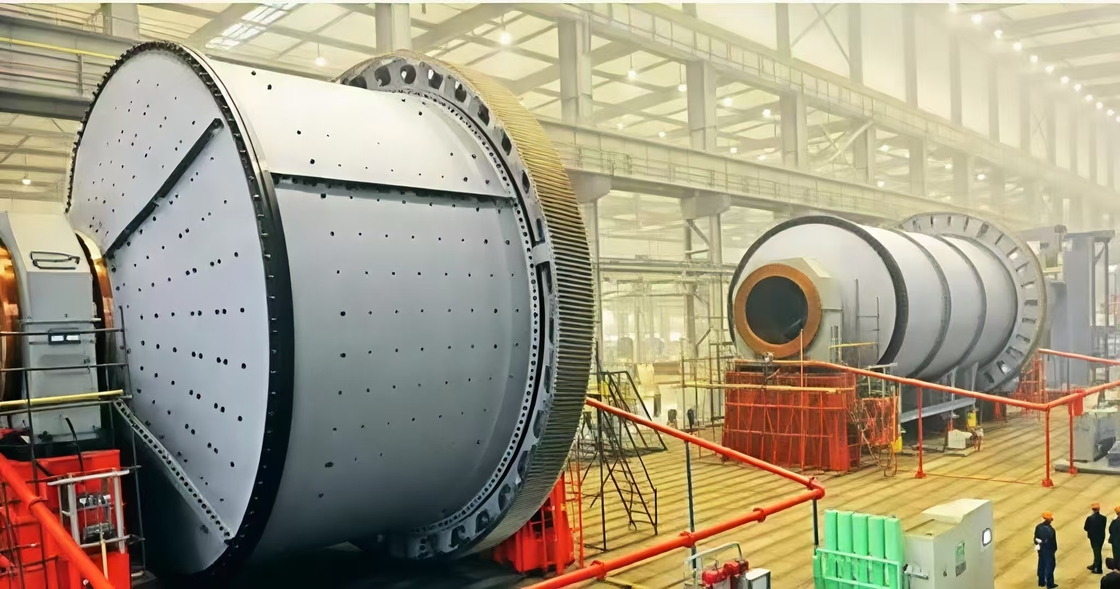

Product Display
Product Parameters
| Cylinder diameter | Cylinder length | Effective area of the cylinder | Working speed | Power |
| (mm) | (mm) | (m3) | (r/min) | (kw) |
| 4000 | 1600-3600 | 19-42 | 16.2 | 240-540 |
| 4500 | 1800-4100 | 27-61 | 15.3 | 360-830 |
| 5000 | 2000-4500 | 38-83 | 14.5 | 530-1200 |
| 5500 | 2200-5000 | 51-112 | 13.8 | 740-1700 |
| 6100 | 2400-5500 | 69-152 | 13.1 | 1050-2400 |
| 6700 | 2700-6000 | 93-201 | 12.5 | 1500-3300 |
| 7300 | 2900-6600 | 120-264 | 12 | 2000-4500 |
| 8000 | 3200-7200 | 160-347 | 11.4 | 2800-6200 |
| 8600 | 3400-7700 | 197-429 | 11 | 3500-7900 |
| 9200 | 3700-8300 | 246-530 | 10.7 | 4500-10000 |
| 9800 | 3900-8800 | 296-640 | 10.3 | 5600-12500 |
| 10400 | 4200-9400 | 359-770 | 10 | 7000-15400 |
| 11000 | 4400-9900 | 422-909 | 9.8 | 8400-19000 |
| 11600 | 4600-10400 | 492-1064 | 9.5 | 10000-22000 |
| 12200 | 4900-11000 | 580-1246 | 9.2 | 12000-27000 |
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
