商品の詳細:
お支払配送条件:
|
| 直径 (mm): | 1600-3000 | 広い（mm）: | 900-2500 |
|---|---|---|---|
| 最大静張力(KN): | 45-120 | 最大静張力差(KN): | 45-120 |
| 最大直径（mm）: | 24〜36 | 最大昇降速度(m/s): | 3-4.5 |
| メインモーターパワー（KW）: | ≤160-≤800 | 主油回路の最高使用圧力(Mpa): | 32 |
| 保証: | 12か月 | 状態: | 新しい |
| ポート: | 青島中国 |

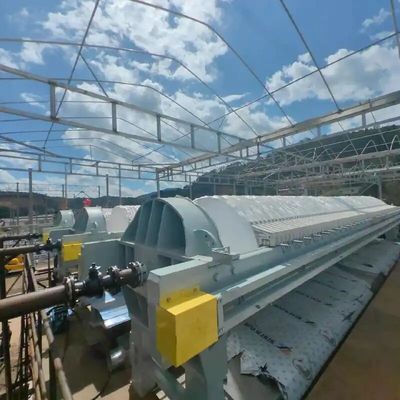

Circular Plate Filter Press Acid And Alkali Resistant Specially For Coal Washing Wastewater
Product Introduction
A filter press is a mechanical device that uses a special filtering medium to apply a certain pressure to an object, causing liquid to be dialyzed out. It is a commonly used solid-liquid separation equipment. It was applied in chemical production in the early 18th century and is still widely used in industries such as chemical, pharmaceutical, metallurgy, dyes, food, brewing, ceramics, and environmental protection.
Product Application
1. As a mature dewatering equipment, filter press is widely used in the field of environmental protection and has become an important equipment for sewage and sludge treatment.
2. Mechanical dewatering of sludge mainly removes capillary water between sludge particles. The moisture content of sludge after ordinary mechanical dewatering is usually 65% -80%, and it is in the form of a sludge cake.
3. Mechanical dewatering equipment used to mainly include belt filter presses, plate and frame filter presses, and horizontal screw settling centrifuges. Nowadays, box filter presses, vertical hydraulic filter presses, diaphragm presses, and high-pressure plate and frame presses are commonly used.
4. When using sludge landfill, sludge dewatering can greatly reduce the site for sludge accumulation and save costs incurred during transportation; When composting sludge, sludge dewatering can ensure smooth composting (usually requiring sludge to have a low moisture content during the composting process); If sludge incineration and centralized treatment are carried out, the sludge dewatering rate can be greatly reduced, greatly reducing heat consumption and lowering the cost of hazardous material treatment.
5. However, the complex composition, low relative density, fine particles, and often colloidal state of sludge determine its difficulty in dewatering. Therefore, except for ultra-high pressure vertical hydraulic filter presses, all other filter presses add a drying process to reduce the residual oil (liquid) rate.
6. Belt filter press has low power consumption. Plastic plate and frame filter press has low moisture content in the filter cake, but the horizontal screw settling centrifuge has strong adaptability to sludge flow fluctuations, good sealing performance, large processing capacity, and small footprint.

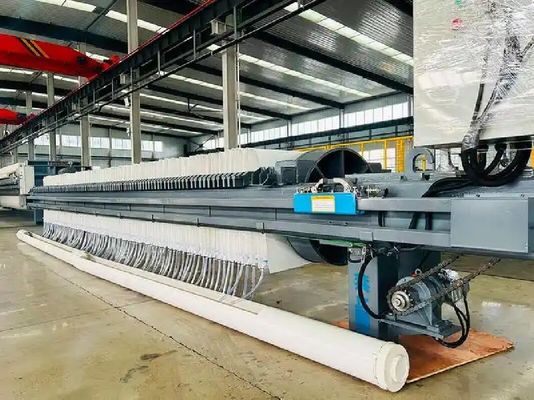

Product Display
Product Parameters
| product model | reel | Maximum lifting height (rope maximum diameter) | wirerope | Maximum lifting speed | Main motor power | Maximum working pressure of main oil circuit | Number of hydraulic motors | ||||||
| quantity | diameter | wide | No.1 | No.2 | No.3 | Maximum static tension | Maximum static tension difference | maximum diameter | |||||
| mm | m | KN | KN | mm | m/s | KW | MPa | per | |||||
| JKYB-3×2.2XP | 1 | 3000 | 2200 | 471 | 981 | 1539 | 120 | 120 | 36 | 4.5 | ≤800 | 32 | ≤6 |
| JKYB-3×2.5XP | 2500 | 546 | 1131 | 1767 | |||||||||
| 2JKYB-3×1.5XP | 2 | 3000 | 1500 | 298 | 630 | 1008 | 120 | 120 | 36 | 4.5 | ≤800 | ≤6 | |
| 2JKYB-3×1.8XP | 1800 | 372 | 780 | 1235 | |||||||||
| JKYB-2.5×2XP | 1 | 2500 | 2000 | 394 | 827 | 1300 | 90 | 90 | 32 | 4 | ≤400 | ≤4 | |
| JKYB-2.5×2.3XP | 2300 | 463 | 967 | 1513 | |||||||||
| JKYB-2.5×2.5XP | 2500 | 510 | 1060 | 1593 | |||||||||
| 2JKYB-2.5×1.2XP | 2 | 2500 | 1200 | 209 | 453 | 734 | 90 | 90 | 32 | 4 | ≤400 | ≤4 | |
| 2JKYB-2.5×1.5XP | 1500 | 278 | 593 | 946 | |||||||||
| 2JKYB-2.5×2XP | 2000 | 394 | 827 | 1305 | |||||||||
| JKYB-2×1.5XP | 1 | 2000 | 1500 | 276 | 588 | 934 | 60 | 60 | 26 | 3.5 | ≤280 | ≤3 | |
| JKYB-2×1.8XP | 1800 | 343 | 724 | 1140 | |||||||||
| 2JKYB-2×1XP | 2 | 2000 | 1000 | 163 | 362 | 590 | 60 | 60 | 26 | 3.5 | ≤200 | ≤3 | |
| 2JKYB-2×1.25XP | 1250 | 220 | 475 | 762 | |||||||||
| JTYB-1.6×1.2XP | 1 | 1600 | 1200 | 176 | 389 | 627 | 45 | 45 | 24 | 3 | ≤200 | ≤2 | |
| JTYB-1.6×1.5XP | 1500 | 235 | 507 | 806 | |||||||||
| 2JTYB-1.6×0.9XP | 2 | 1600 | 900 | 118 | 272 | 450 | 45 | 345 | 24 | 3 | ≤160 | ≤2 | |
| 2JTYB-1.6×1.2XP | 1200 | 177 | 390 | 628 | |||||||||
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
