商品の詳細:
お支払配送条件:
|
| 名前: | スパイラルシュートセパレーター | 給餌サイズ: | 0.3-0.02 mm |
|---|---|---|---|
| Applicationhtの塩素のプラスチック: | 鉄の、錫分類、タングステン、タンタル、ニオブ、金、石炭 | 外径: | 400-1200のmm |
| 特徴: | 単純構造、可動部分無し、ライト級選手、騒音無し | 鉱石の供給の集中: | 25- 55% |
| ポート: | 青島 | 分類: | 鉱石ドレッシング装置 |
Spiral Chute Operates Silently And Consumes Low Energy
Applicable Materials
This equipment is suitable for separating fine-grained minerals with particle sizes ranging from 0.3 to 0.02 mm. It is widely used in the separation of ferrous metals (iron), non-ferrous metals (tin, tungsten, tantalum, niobium), precious metals (gold), and rare metals (monazite, rutile, zircon), and is also suitable for coal mines and other metallic and non-metallic minerals with significant differences in specific gravity.
Structural Features
The equipment mainly consists of the following six major components:
1. Ore Distributor: Adopts a multi-tube design to ensure even distribution of ore and easy control.
2. Feed Chute: Guides the ore slurry smoothly into the separation surface.
3. Spiral Chute: The core separation component, made of fiberglass (glass fiber reinforced plastic), connected by bolts. The separation surface is covered with a prefabricated wear-resistant layer, featuring light weight, sturdiness, corrosion resistance, and durability.
4. Product Collection Trough: Equipped with a valve block adjustment mechanism to accurately collect concentrate, middlings, and tailings.
5. Product Collection Hopper: Concentric annular structure, used to collect and discharge multiple ore streams.
6. Chute Support: Adopts a cross-shaped or triangular frame structure to support the entire machine and ensure the installation angle.
Product parameters of Ore Dressing Equipment
| Model | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Outer diameter (mm) | 1200 | 900 | 600 | 400 | |
| Pitch (mm) | 900 ,720 , 540 | 675 , 540 , 405 | 450 , 360 , 270 | 240 , 180 | |
| Pitch to diameter ratio (pitch/diameter) | 0,75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.6 , 0.45 | |
| Transverse Angle (degree) | 9° | 9° | 9° | 9° | |
|
Each most Number of mounting screws |
4 | 4 | 3 | 2 | |
| Feeding size (mm) | 0.3-.0.03 | 0.3-.0.03 | 0.2-0.02 | 0.2-0.02 | |
| Ore feeding concentration (%) | 25-55 | 25-55 | 25-55 | 25-55 | |
| Production capacity (ton/hour) | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
| Dimensions | L(mm) | 1360 | 1060 | 700 | 460 |
| W(mm) | 1360 | 1060 | 700 | 460 | |
| H(mm) | 5230 | 4000 | 2600 | 1500 | |
| Weight(kg) | 600 | 400 | 150 | 50 | |

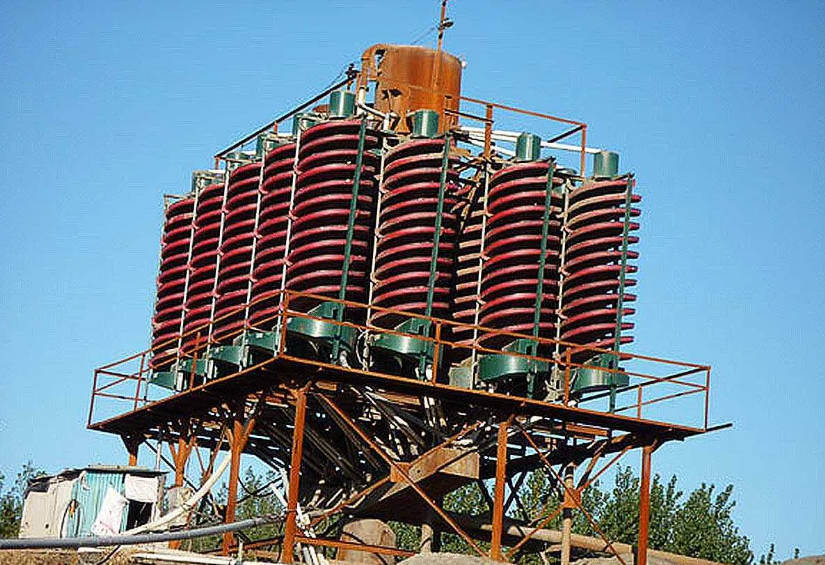

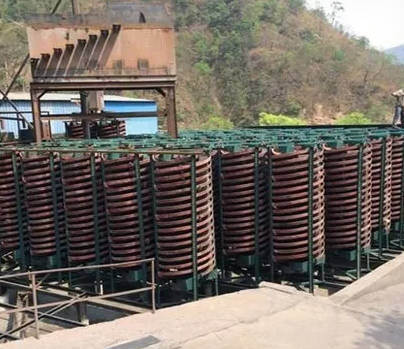

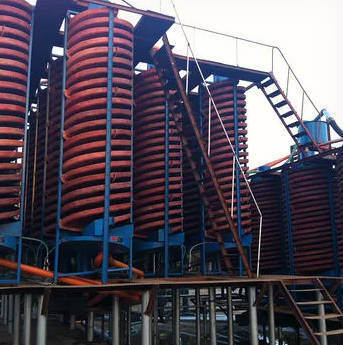

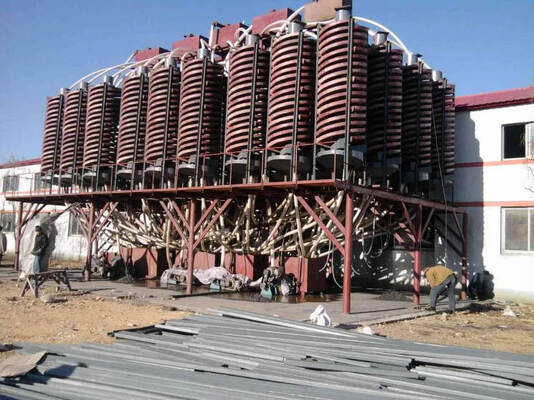

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
